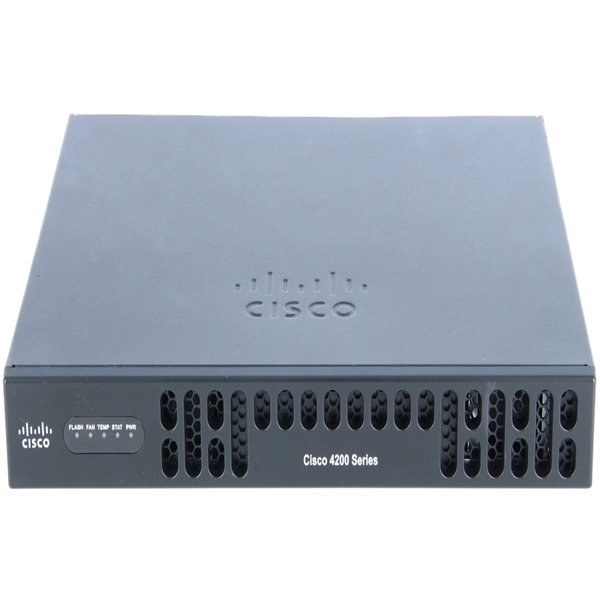

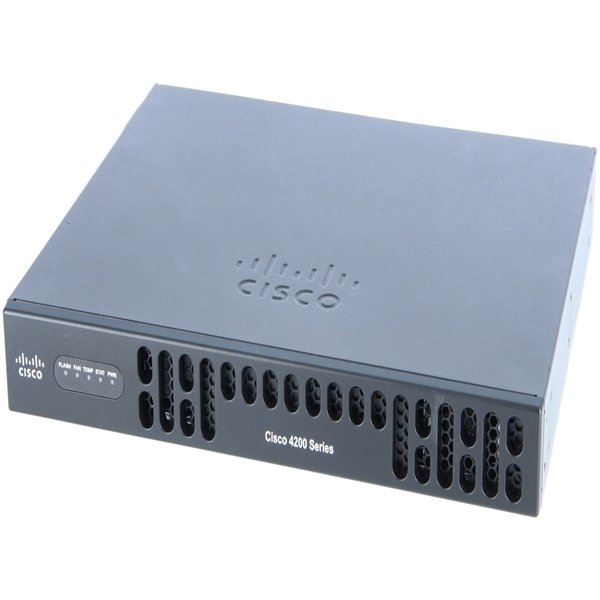

| Cisco Integrated Services Router 4221 |
| Router – GigE – WAN ports: 2 – rack-mountable |
|
| Group |
Network Accessories |
|
| Manufacturer |
Cisco |
|
| Manufacturer item no. |
ISR4221/K9 |
|
| EAN/UPC |
0882658924231 |
|
|
|
|
| Description |
|
|
| The Cisco 4221 ISR is everything you need in a single platform: the digital-ready platform consolidates many must-have IT functions, including network, security, compute, storage, and unified communications. This not only simplifies day-to-day IT management, but it also means significant savings in capital, operational, and management expenses for lower total cost of ownership. The ISR4221/K9 is the basic modular platform, and it is upgradable so you can increase capabilities and functions with added modules. |
|
|
|
|
| Main features |
|
| Product Description |
Cisco Integrated Services Router 4221 – router – rack-mountable |
| Device Type |
Router |
| Enclosure Type |
Rack-mountable – modular – 1U |
| WAN Ports Qty |
2 |
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance |
Aggregate throughput: 35 Mbps |
| Network / Transport Protocol |
IPSec, PPPoE, DHCP |
| Routing Protocol |
OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), IPv4-to-IPv6 Multicast |
| Remote Management Protocol |
SNMP, RMON |
| Features |
VPN support, VLAN support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), wall mountable, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, NetFlow, IPFIX |
| Compliant Standards |
IEEE 802.3, IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824 |
| Power |
AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) |
32.26 cm x 25.4 cm x 4.37 cm |
| Weight |
3.22 kg |
|
|
|
| Extended details |
|
|
| General |
|
| Device Type |
Router |
| Enclosure Type |
Rack-mountable – modular – 1U |
| Connectivity Technology |
Wired |
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance |
Aggregate throughput: 35 Mbps |
| Network / Transport Protocol |
IPSec, PPPoE, DHCP |
| Routing Protocol |
OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), IPv4-to-IPv6 Multicast |
| Remote Management Protocol |
SNMP, RMON |
| Features |
VPN support, VLAN support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), wall mountable, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, NetFlow, IPFIX |
| Compliant Standards |
IEEE 802.3, IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824, CISPR 22 Class A, CISPR 24, EN55024, EN50082-1, AS/NZS 60950-1, ICES-003 Class A, CS-03, R&TTE, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 3548 Class A, GB 4943, VCCI V-3, EN 61000, KN22, KN24, CNS 13438, EN 55022 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1 |
| RAM |
4 GB (installed) / 4 GB (max) – DDR3 SDRAM |
| Flash Memory |
8 GB (installed) / 8 GB (max) |
| Expansion / Connectivity |
|
| Interfaces |

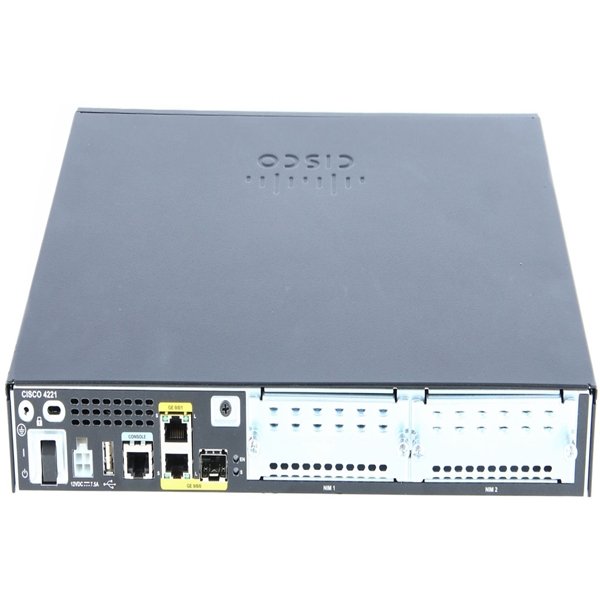

WAN / LAN: 2 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ Serial: 1 x console – RJ-45 ¦ USB 2.0: 1 x 4 pin USB Type A ¦ 1 x SFP (mini-GBIC) ¦ Management: 1 x 1000Base-T – RJ-45 |
| Expansion Slots |
2 (total) / 2 (free) x NIM |
| Power |
|
| Power Device |
External power adapter |
| Voltage Required |
AC 120/230 V (50/60 Hz) |
| Miscellaneous |
|
| MTBF |
593270 hours |
| Software / System Requirements |
|
| OS Provided |
Cisco IOS IP Base |
| Dimensions & Weight |
|
| Width |
32.26 cm |
| Depth |
25.4 cm |
| Height |
4.37 cm |
| Weight |
3.22 kg |
| Environmental Parameters |
|
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
5 – 85% |
|
