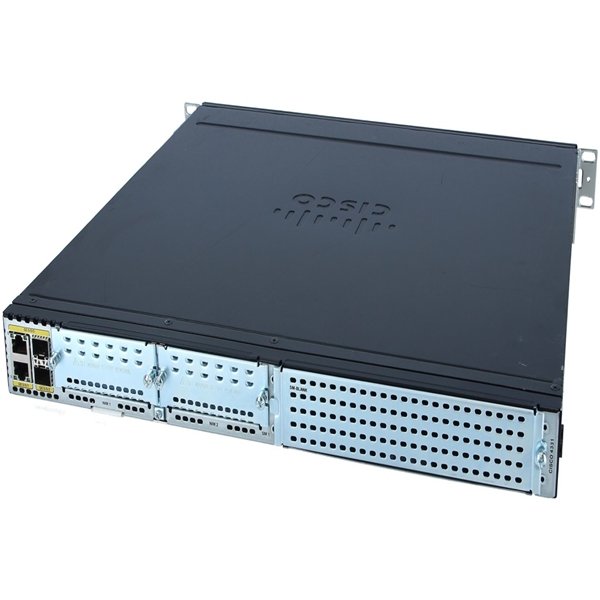

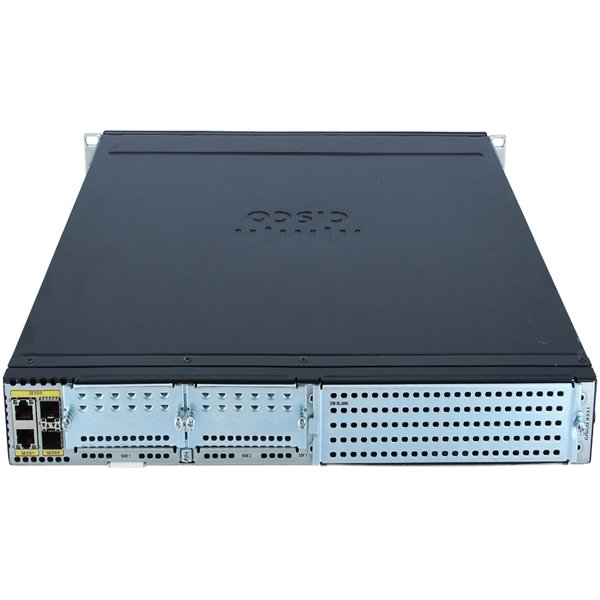

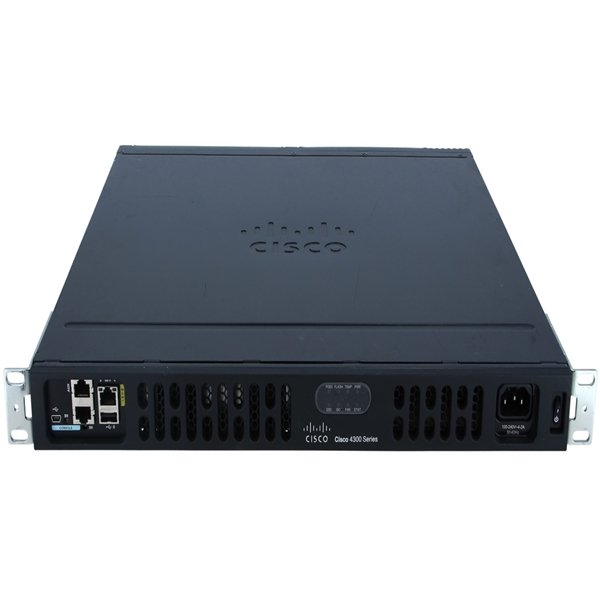

| Cisco Integrated Services Router 4331 |
| Security Bundle – router – GigE – WAN ports: 3 – rack-mountable |
|
| Group |
Network Equipment |
|
| Manufacturer |
Cisco |
|
| Manufacturer item no. |
ISR4331-SEC/K9 |
|
| EAN/UPC |
0882658710544 |
|
|
|
|
| Description |
|
|
| The Cisco 4000 family Integrated Services Router (ISR) revolutionizes WAN communications in the enterprise branch. With new levels of built-in intelligent network capabilities and convergence, it specifically addresses the growing need for application-aware networking in distributed enterprise sites. These locations tend to have lean IT resources. But they often also have a growing need for direct communication with both private data centers and public clouds across diverse links, including Multiprotocol Label Switching (MPLS) VPNs and the Internet. |
|
|
|
|
| Main features |
|
| Product Description |
Cisco Integrated Services Router 4331 – Security Bundle – router – rack-mountable |
| Device Type |
Router |
| Enclosure Type |
Rack-mountable – modular – 1U |
| WAN Ports Qty |
3 |
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance |
Aggregate throughput: 100 Mbps |
| Network / Transport Protocol |
IPSec, PPPoE, DHCP |
| Routing Protocol |
OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), IPv4-to-IPv6 Multicast |
| Remote Management Protocol |
SNMP, RMON |
| Features |
Firewall protection, VPN support, VLAN support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), wall mountable, IPSec Virtual Private Network (VPN), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), RADIUS support, NetFlow, IPFIX |
| Compliant Standards |
IEEE 802.3, IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824 |
| Power |
AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) |
43.815 cm x 43.815 cm x 4.455 cm |
| Weight |
5 kg |
|
|
|
| Extended details |
|
|
| General |
|
| Device Type |
Router |
| Enclosure Type |
Rack-mountable – modular – 1U |
| Connectivity Technology |
Wired |
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance |
Aggregate throughput: 100 Mbps |
| Network / Transport Protocol |
IPSec, PPPoE, DHCP |
| Routing Protocol |
OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), IPv4-to-IPv6 Multicast |
| Remote Management Protocol |
SNMP, RMON |
| Features |
Firewall protection, VPN support, VLAN support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), wall mountable, IPSec Virtual Private Network (VPN), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), RADIUS support, NetFlow, IPFIX |
| Compliant Standards |
IEEE 802.3, IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824, CISPR 22 Class A, CISPR 24, EN55024, EN50082-1, AS/NZS 60950-1, ICES-003 Class A, CS-03, R&TTE, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 3548 Class A, GB 4943, VCCI V-3, EN 61000, KN22, KN24, CNS 13438, EN 55022 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1 |
| RAM |
4 GB (installed) / 16 GB (max) – DDR3 SDRAM |
| Flash Memory |
4 GB (installed) / 16 GB (max) |
| Expansion / Connectivity |
|
| Interfaces |
WAN / LAN: 2 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ Serial: 1 x console – RJ-45 ¦ Management: 1 x console – mini-USB Type B ¦ Serial: 1 x auxiliary – RJ-45 ¦ USB 2.0: 1 x 4 pin USB Type A ¦ 2 x SFP (mini-GBIC) ¦ Management: 1 x RJ-45 |
| Expansion Slots |
2 (total) / 2 (free) x NIM ¦ 1 (total) / 1 (free) x ISC ¦ 1 (total) / 1 (free) x Enhanced Service Module (SM-X) ¦ 2 (total) / 0 (free) x DIMM 240-pin |
| Power |
|
| Power Device |
Internal power supply – 250 Watt |
| Installed Qty |
1 (installed) / 1 (max) |
| Voltage Required |
AC 120/230 V (50/60 Hz) |
| Miscellaneous |
|
| Rack Mounting Kit |
Included |
| Software / System Requirements |
|
| OS Provided |
Cisco IOS Security |
| Software Included |
Cisco IOS IP Base |
| Dimensions & Weight |
|
| Width |
43.815 cm |
| Depth |
43.815 cm |
| Height |
4.455 cm |
| Weight |
5 kg |
| Manufacturer Warranty |
|
| Service & Support |
Limited warranty – advance parts replacement – 90 days – response time: 10 days |
| Environmental Parameters |
|
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
5 – 85% |
|
