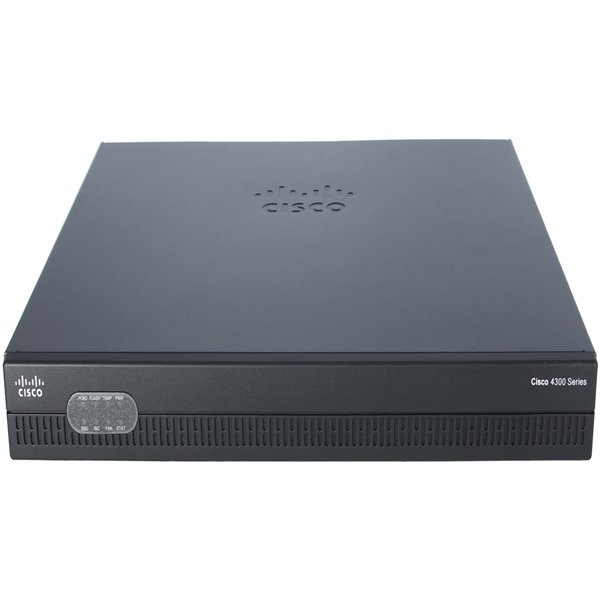

Cisco Integrated Serv. Router 4321

Cisco Integrated Serv. Router 4321 – Router – GigE – WAN ports: 2 – rack-mountable
The Cisco 4000 family Integrated Services Router (ISR) revolutionizes WAN communications in the enterprise branch. With amazing levels of built-in intelligent network capabilities and convergence, it specifically addresses the growing need for application-aware networking in distributed enterprise sites. These locations tend to have lean IT resources. But they often also have a growing need for direct communication with both private data centers and public clouds across diverse links, including Multiprotocol Label Switching (MPLS) VPNs and the Internet. The Cisco 4000 series ISRs consolidate many must-have IT functions, including network, compute, and storage resources. The high-performance, integrated routers run multiple concurrent IWAN services without slowing your data throughput.
Cisco ISR 4321 features modular network interfaces with diverse connection options for load-balancing and network resiliency and modular interfaces with online removal and insertion (OIR) for module upgrades without network disruption.

Compare
Add to wishlist
Add to quote loading
Category: Uncategorized
Share:
  • Description
  • Reviews (0)
  • Shipping & Delivery
Description

Data sheet

Cisco Integrated Services Router 4321
Router – GigE – WAN ports: 2 – rack-mountable
Group Network Equipment
Manufacturer Cisco
Manufacturer item no. ISR4321/K9
EAN/UPC 0882658732263
Description
The Cisco 4000 family Integrated Services Router (ISR) revolutionizes WAN communications in the enterprise branch. With amazing levels of built-in intelligent network capabilities and convergence, it specifically addresses the growing need for application-aware networking in distributed enterprise sites. These locations tend to have lean IT resources. But they often also have a growing need for direct communication with both private data centers and public clouds across diverse links, including Multiprotocol Label Switching (MPLS) VPNs and the Internet. The Cisco 4000 series ISRs consolidate many must-have IT functions, including network, compute, and storage resources. The high-performance, integrated routers run multiple concurrent IWAN services without slowing your data throughput.
Cisco ISR 4321 features modular network interfaces with diverse connection options for load-balancing and network resiliency and modular interfaces with online removal and insertion (OIR) for module upgrades without network disruption.
Main features
Product Description Cisco Integrated Services Router 4321 – router – rack-mountable
Device Type Router
Enclosure Type Rack-mountable – modular – 1U
WAN Ports Qty 2
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Performance Aggregate throughput: 50 Mbps
Network / Transport Protocol IPSec, PPPoE, DHCP
Routing Protocol OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), IPv4-to-IPv6 Multicast
Remote Management Protocol SNMP, RMON
Features VPN support, VLAN support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), wall mountable, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, NetFlow, IPFIX
Compliant Standards IEEE 802.3, IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824
Power AC 120/230 V (50/60 Hz)
Dimensions (WxDxH) 36.957 cm x 29.464 cm x 4.455 cm
Weight 3.5 kg
Extended details
General
Device Type Router
Enclosure Type Rack-mountable – modular – 1U
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Performance Aggregate throughput: 50 Mbps
Network / Transport Protocol IPSec, PPPoE, DHCP
Routing Protocol OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), IPv4-to-IPv6 Multicast
Remote Management Protocol SNMP, RMON
Features VPN support, VLAN support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), wall mountable, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, NetFlow, IPFIX
Compliant Standards IEEE 802.3, IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824, CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, ICES-003 Class A, CS-03, R&TTE, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 3548 Class A, GB 4943, VCCI V-3, EN 61000, KN22, KN24, CNS 13438, EN 300 386, CAN/CSA-C22.2 No. 60950-1
RAM 4 GB (installed) / 8 GB (max) – DDR3 SDRAM
Flash Memory 4 GB (installed) / 8 GB (max)
Expansion / Connectivity
Interfaces WAN / LAN: 2 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ Serial: 1 x console – RJ-45 ¦ Management: 1 x console – mini-USB Type B ¦ Serial: 1 x auxiliary – RJ-45 ¦ USB 2.0: 1 x 4 pin USB Type A ¦ 1 x SFP (mini-GBIC) ¦ Management: 1 x RJ-45
Expansion Slots 2 (total) / 2 (free) x NIM ¦ 1 (total) / 1 (free) x ISC ¦ 1 (total) / 0 (free) x DIMM 240-pin
Power
Power Device External power adapter
Voltage Required AC 120/230 V (50/60 Hz)
Miscellaneous
Rack Mounting Kit Included
Software / System Requirements
OS Provided Cisco IOS IP Base
Dimensions & Weight
Width 36.957 cm
Depth 29.464 cm
Height 4.455 cm
Weight 3.5 kg
Manufacturer Warranty
Service & Support Limited warranty – advance parts replacement – 90 days – response time: 10 days
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 5 – 85%
