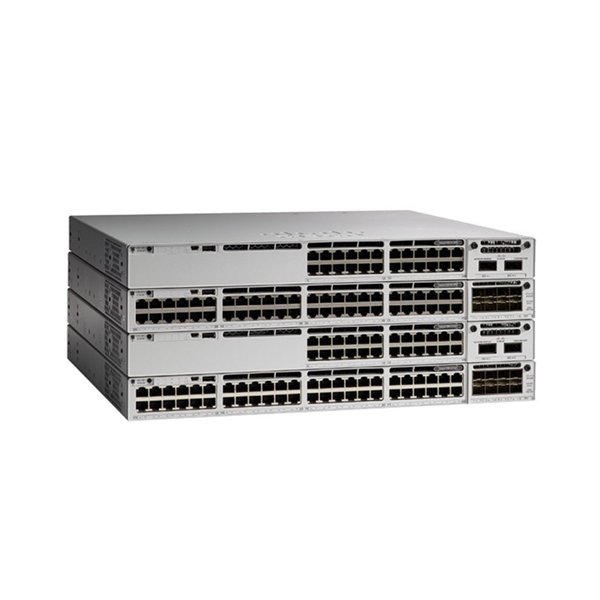

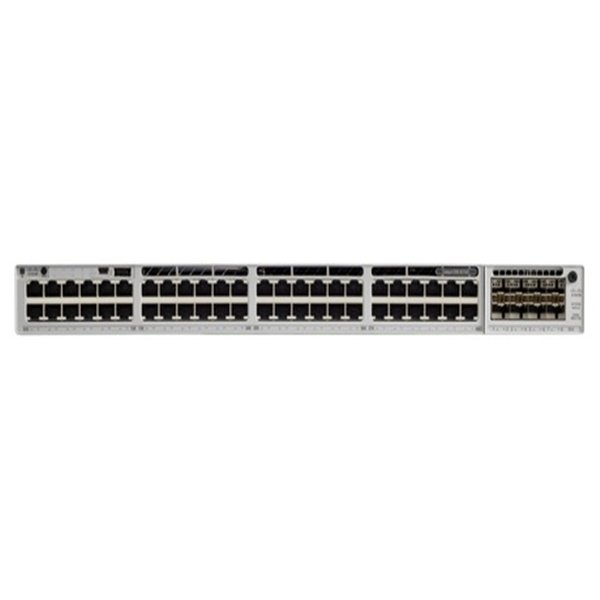

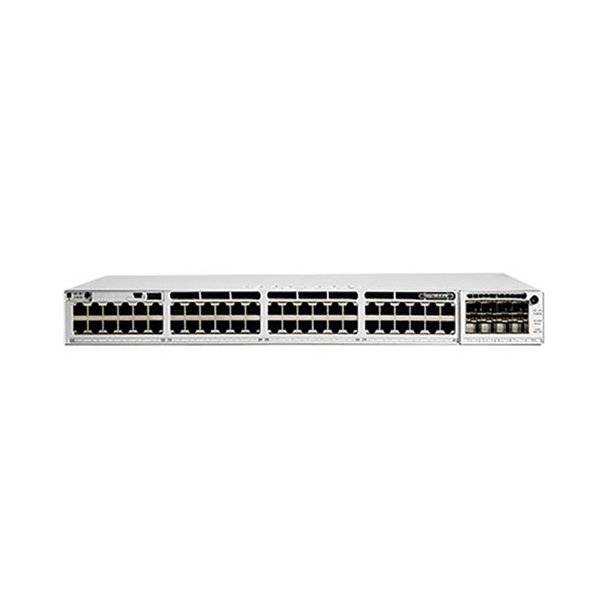

| Cisco Catalyst 9300 – Network Essentials |
| switch – L3 – Managed – 48 x 10/100/1000 (PoE ) – rack-mountable – PoE (437 W) |
|
| Group |
Network Equipment |
|
| Manufacturer |
Cisco |
|
| Manufacturer item no. |
C9300-48P-E |
|
| EAN/UPC |
0889728035736 |
|
|
|
|
| Description |
|
|
| The Catalyst 9300 series is an advanced stackable switching platform. These network switches are built for security, IoT, and the cloud. |
|
|
|
|
| Main features |
|
| Product Description |
Cisco Catalyst 9300 – Network Essentials – switch – 48 ports – Managed – rack-mountable |
| Device Type |
Switch – 48 ports – L3 – Managed – stackable |
| Enclosure Type |
Rack-mountable 1U |
| Subtype |
Gigabit Ethernet |
| Ports |
48 x 10/100/1000 (PoE ) |
| Power Over Ethernet (PoE) |
PoE |
| PoE Budget |
437 W |
| Performance |
Switching capacity: 128 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding rate: 190.48 Mpps |
| Capacity |
IPv4 routing table entries: 32000 ¦ IPv6 routing table entries: 16000 ¦ Flexible NetFlow entries: 64000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 2000 |
| MAC Address Table Size |
32000 entries |
| Jumbo Frame Support |
9198 bytes |
| Routing Protocol |
OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng |
| Remote Management Protocol |
SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Features |
Trunking, full duplex mode, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, FTP client, 3 fans, Control plane protection (CoPP), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Private VLAN |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at |
| Power Redundancy |
Optional |
| Dimensions (WxDxH) |
44.5 cm x 44.5 cm x 4.4 cm |
| Weight |
7.59 kg |
|
|
|
| Extended details |
|
|
| General |
|
| Device Type |
Switch – 48 ports – L3 – Managed – stackable |
| Enclosure Type |
Rack-mountable 1U |
| Subtype |
Gigabit Ethernet |
| Ports |
48 x 10/100/1000 (PoE ) |
| Power Over Ethernet (PoE) |
PoE |
| PoE Budget |
437 W |
| Performance |
Switching capacity: 128 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding rate: 190.48 Mpps |
| Capacity |
IPv4 routing table entries: 32000 ¦ IPv6 routing table entries: 16000 ¦ Flexible NetFlow entries: 64000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 2000 |
| MAC Address Table Size |
32000 entries |
| Jumbo Frame Support |
9198 bytes |
| Routing Protocol |
OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng |
| Remote Management Protocol |
SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Encryption Algorithm |
128-bit AES |
| Features |
Trunking, full duplex mode, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, FTP client, 3 fans, Control plane protection (CoPP), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Private VLAN |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at |
| RAM |
8 GB |
| Flash Memory |
16 GB |
| Status Indicators |
Status |
| Expansion / Connectivity |
|
| Interfaces |
48 x 1000Base-T RJ-45 PoE ¦ 1 x USB 2.0 |
| Expansion Slots |
1 (total) / 1 (free) x Expansion Slot |
| Power |
|
| Power Device |
Internal power supply – hot-plug |
| Installed Qty |
2 (max) |
| Power Redundancy |
Optional |
| Miscellaneous |
|
| MTBF |
277,770 hours |
| Compliant Standards |
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1 |
| Software / System Requirements |
|
| Software Included |
Cisco IOS Universal |
| Dimensions & Weight |
|
| Width |
44.5 cm |
| Depth |
44.5 cm |
| Height |
4.4 cm |
| Weight |
7.59 kg |
| Manufacturer Warranty |
|
| Service & Support |
Limited warranty – replacement – lifetime – response time: next business day ¦ Technical support – consulting – 90 days |
| Environmental Parameters |
|
| Min Operating Temperature |
-5 °C |
| Max Operating Temperature |
45 °C |
| Humidity Range Operating |
5 – 90% (non-condensing) |
| Min Storage Temperature |
-40 °C |
| Max Storage Temperature |
70 °C |
| Humidity Range Storage |
5 – 90% (non-condensing) |
|
