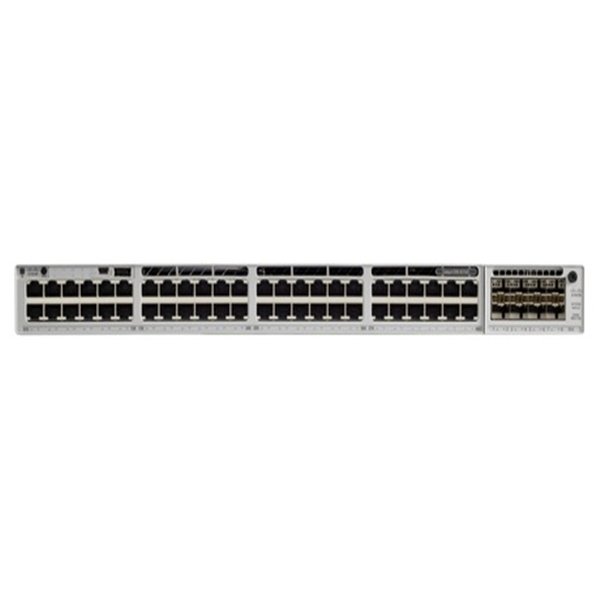

| Cisco Catalyst 9300 – Network Advantage |
| switch – L3 – Managed – 48 x 10/100/1000 (PoE ) – rack-mountable – PoE (437 W) |
|
| Group |
Network Equipment |
|
| Manufacturer |
Cisco |
|
| Manufacturer item no. |
C9300-48P-A |
|
| EAN/UPC |
0889728051651 |
|
|
|
|
| Description |
|
|
| The Catalyst 9300 series is an advanced stackable switching platform. These network switches are built for security, IoT, and the cloud. |
|
|
|
|
| Main features |
|
| Product Description |
Cisco Catalyst 9300 – Network Advantage – switch – 48 ports – Managed – rack-mountable |
| Device Type |
Switch – 48 ports – L3 – Managed – stackable |
| Enclosure Type |
Rack-mountable 1U |
| Subtype |
Gigabit Ethernet |
| Ports |
48 x 10/100/1000 (PoE ) |
| Power Over Ethernet (PoE) |
PoE |
| PoE Budget |
437 W |
| Performance |
Switching capacity: 128 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding rate: 190.48 Mpps |
| Capacity |
IPv4 routing table entries: 32000 ¦ IPv6 routing table entries: 16000 ¦ Flexible NetFlow entries: 64000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 2000 |
| MAC Address Table Size |
32000 entries |
| Jumbo Frame Support |
9198 bytes |
| Routing Protocol |
OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng |
| Remote Management Protocol |
SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Features |
DHCP support, trunking, Syslog support, full duplex mode, Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Non-Stop Routing (NSR), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), Multicast Source Discovery Protocol (MSDP), 802.1x authentication, 16MB packet buffer, FTP client, MACsec support, 3 fans, Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Application Visibility and Control (AVC), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN, Layer 3 VPN (L3VPN) support, Encapsulated Remote SPAN (ERSPAN), Security Group Tag (SGT) caching, Security Group Access Control List (SGACL), IT Service Management (ITSM) integration, third-party IP Address Management (IPAM) integration |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at |
| Power |
AC 120/230 V (50 – 60 Hz) |
| Power Redundancy |
Optional |
| Dimensions (WxDxH) |
44.5 cm x 44.5 cm x 4.4 cm |
| Weight |
7.59 kg |
| System Requirements |
Cisco IOS Universal |
|
|
|
| Extended details |
|
|
| General |
|
| Device Type |
Switch – 48 ports – L3 – Managed – stackable |
| Enclosure Type |
Rack-mountable 1U |
| Subtype |
Gigabit Ethernet |
| Ports |
48 x 10/100/1000 (PoE ) |
| Power Over Ethernet (PoE) |
PoE |
| PoE Budget |
437 W |
| Performance |
Switching capacity: 128 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding rate: 190.48 Mpps |
| Capacity |
IPv4 routing table entries: 32000 ¦ IPv6 routing table entries: 16000 ¦ Flexible NetFlow entries: 64000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 2000 |
| MAC Address Table Size |
32000 entries |
| Jumbo Frame Support |
9198 bytes |
| Routing Protocol |
OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng |
| Remote Management Protocol |
SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Encryption Algorithm |
128-bit AES |
| Features |
DHCP support, trunking, Syslog support, full duplex mode, Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Non-Stop Routing (NSR), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), Multicast Source Discovery Protocol (MSDP), 802.1x authentication, 16MB packet buffer, FTP client, MACsec support, 3 fans, Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Application Visibility and Control (AVC), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN, Layer 3 VPN (L3VPN) support, Encapsulated Remote SPAN (ERSPAN), Security Group Tag (SGT) caching, Security Group Access Control List (SGACL), IT Service Management (ITSM) integration, third-party IP Address Management (IPAM) integration |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at |
| RAM |
8 GB |
| Flash Memory |
16 GB |
| Status Indicators |
Status |
| Expansion / Connectivity |
|
| Interfaces |
48 x 1000Base-T RJ-45 PoE ¦ 1 x USB 2.0 |
| Expansion Slots |
1 (total) / 1 (free) x Expansion Slot |
| Power |
|
| Power Device |
Internal power supply – hot-plug |
| Installed Qty |
1 (installed) / 2 (max) |
| Power Redundancy |
Optional |
| Power Provided |
715 Watt |
| Voltage Required |
AC 120/230 V (50 – 60 Hz) |
| Miscellaneous |
|
| MTBF |
277,770 hours |
| Compliant Standards |
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1 |
| Software / System Requirements |
|
| OS Required |
Cisco IOS Universal |
| Dimensions & Weight |
|
| Width |
44.5 cm |
| Depth |
44.5 cm |
| Height |
4.4 cm |
| Weight |
7.59 kg |
| Manufacturer Warranty |
|
| Service & Support |
Limited warranty – replacement – lifetime – response time: next business day ¦ Technical support – consulting – 90 days |
| Environmental Parameters |
|
| Min Operating Temperature |
-5 °C |
| Max Operating Temperature |
45 °C |
| Humidity Range Operating |
5 – 90% (non-condensing) |
| Min Storage Temperature |
-40 °C |
| Max Storage Temperature |
70 °C |
| Humidity Range Storage |
5 – 90% (non-condensing) |
|
