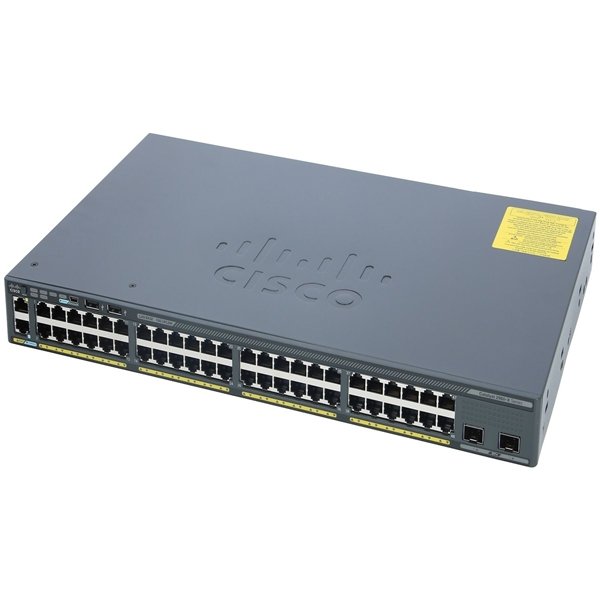

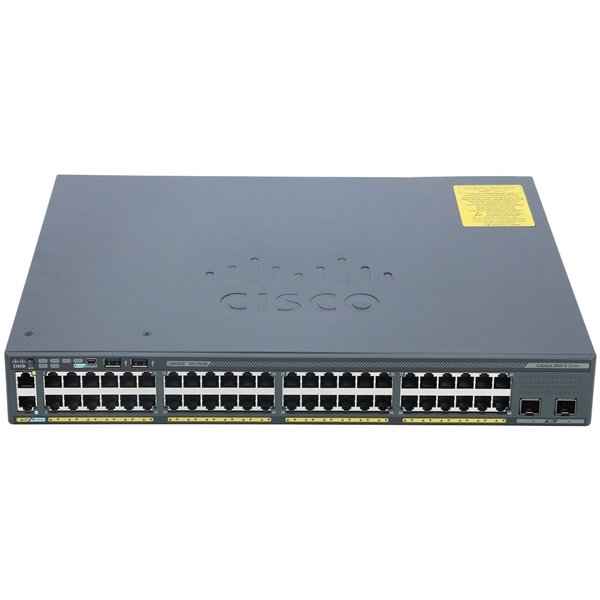

| Cisco Catalyst 2960X-48TD-L – Switch |
| Managed – 48 x 10/100/1000 2 x 10 Gigabit SFP – desktop – rack-mountable |
|
| Group |
Network Equipment |
|
| Manufacturer |
Cisco |
|
| Manufacturer item no. |
WS-C2960X-48TD-L |
|
| EAN/UPC |
0882658554353 |
|
|
|
|
| Description |
|
|
| Cisco Catalyst 2960-X series switch is fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications. Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS software features. |
|
|
|
|
| Main features |
|
| Product Description |
Cisco Catalyst 2960X-48TD-L – switch – 48 ports – Managed – rack-mountable |
| Device Type |
Switch – 48 ports – Managed – stackable |
| Enclosure Type |
Rack-mountable 1U |
| Subtype |
Gigabit Ethernet |
| Ports |
48 x 10/100/1000 2 x 10 Gigabit SFP |
| Performance |
Switching capacity: 216 Gbps ¦ Forwarding performance (64-byte packet size): 130.9 Mpps |
| Capacity |
Virtual interfaces (VLANs): 1023 |
| Jumbo Frame Support |
9216 bytes |
| Remote Management Protocol |
SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI |
| Features |
Layer 2 switching, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, RADIUS support, Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Cisco EnergyWise technology, Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST ), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), NetFlow, Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1ae, IEEE 802.3az, IEEE 802.1AX |
| Power |
AC 120/230 V (50/60 Hz) |
| Power Redundancy |
Optional |
| Dimensions (WxDxH) |
44.5 cm x 27.9 cm x 4.5 cm |
| Weight |
4.3 kg |
|
|
|
| Extended details |
|
|
| General |
|
| Device Type |
Switch – 48 ports – Managed – stackable |
| Enclosure Type |
Desktop, rack-mountable 1U |
| Subtype |
Gigabit Ethernet |
| Ports |
48 x 10/100/1000 2 x 10 Gigabit SFP |
| Performance |
Switching capacity: 216 Gbps ¦ Forwarding performance (64-byte packet size): 130.9 Mpps |
| Capacity |
Virtual interfaces (VLANs): 1023 |
| Jumbo Frame Support |
9216 bytes |
| Max Units In A Stack |
8 |
| Remote Management Protocol |
SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI |
| Authentication Method |
Kerberos, Secure Shell (SSH), RADIUS, TACACS |
| Features |
Layer 2 switching, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, RADIUS support, Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Cisco EnergyWise technology, Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST ), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), NetFlow, Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1ae, IEEE 802.3az, IEEE 802.1AX |
| Processor |
: 600 MHz |
| RAM |
512 MB |
| Flash Memory |
128 MB |
| Status Indicators |
Port transmission speed, port duplex mode, system, status, link/activity |
| Expansion / Connectivity |
|
| Interfaces |
48 x 1000Base-T 10Base-T/100Base-TX/1000Base-T – RJ-45 – RJ-45 ¦ 1 x console console – RJ-45 – RJ-45 ¦ 1 x mini-USB console – mini-USB Type B – Type B management ¦ 1 x USB Type A ¦ 1 x 1000Base-TX 10Base-T/100Base-TX – RJ-45 – RJ-45 management ¦ 2 x SFP – SFP uplink |
| Expansion Slots |
1 (total) / 1 (free) x Stacking Module |
| Power |
|
| Power Device |
Internal power supply |
| Power Redundancy |
Optional |
| Voltage Required |
AC 120/230 V (50/60 Hz) |
| Features |
Redundant Power System (RPS) connector |
| Miscellaneous |
|
| MTBF |
445,460 hours |
| Compliant Standards |
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN22, KN24, CNS 13438(95) Class A, EN 55022 Class A, EN 300 386 |
| Software / System Requirements |
|
| Software Included |
Cisco IOS LAN Base |
| Dimensions & Weight |
|
| Width |
44.5 cm |
| Depth |
27.9 cm |
| Height |
4.5 cm |
| Weight |
4.3 kg |
| Manufacturer Warranty |
|
| Service & Support |
Limited warranty – advance parts replacement – lifetime – response time: next business day ¦ Technical support – consulting – 90 days |
| Environmental Parameters |
|
| Min Operating Temperature |
-5 °C |
| Max Operating Temperature |
45 °C |
| Humidity Range Operating |
10 – 95% (non-condensing) |
| Min Storage Temperature |
-25 °C |
| Max Storage Temperature |
70 °C |
| Humidity Range Storage |
10 – 95% (non-condensing) |
|
