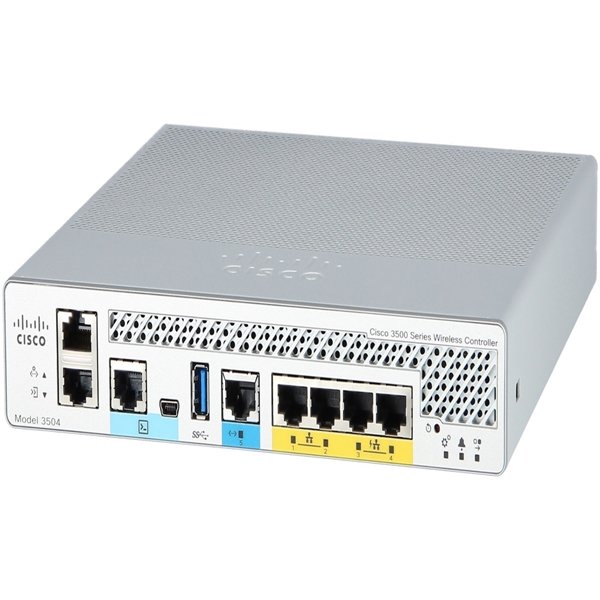

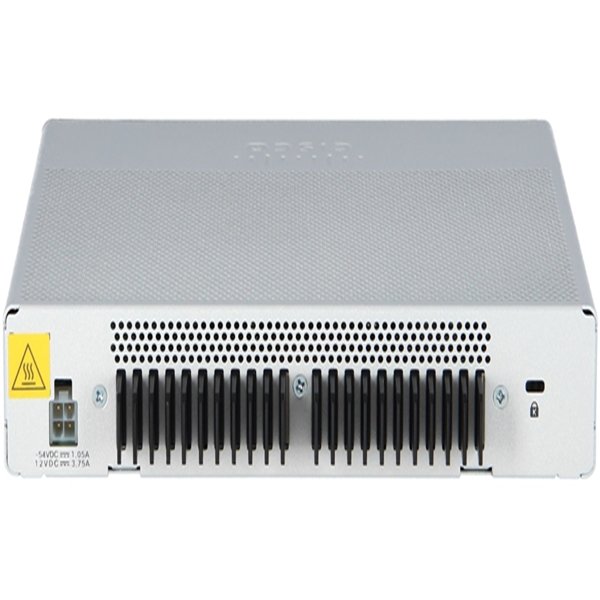

| Cisco Wireless Controller 3504 |
| Network management device – 4 ports – PPP – 10 GigE – 802.11ac Wave 2 – 802.11ac Wave 1 – Wi-Fi – desktop |
|
| Group |
Network Equipment |
|
| Manufacturer |
Cisco |
|
| Manufacturer item no. |
AIR-CT3504-K9 |
|
| EAN/UPC |
0882658998867 |
|
|
|
|
| Description |
|
|
| The provides centralized control, management, and troubleshooting for small to medium-sized enterprises and branch offices. It offers flexibility to support multiple deployment modes in the same controller—a centralized mode for campus environments, Cisco FlexConnect mode for lean branches managed over the WAN, and a mesh (bridge) mode for deployments in which full Ethernet cabling is unavailable. As a component of the Cisco Unified Wireless Network, the 3504 controller provides real-time communications between Cisco Aironet access points, Cisco Prime Infrastructure, and the Cisco Mobility Services Engine. It is also interoperable with the Cisco 5520 and 8540 Wireless Controllers. |
|
|
|
|
| Main features |
|
| Product Description |
Cisco Wireless Controller 3504 – network management device |
| Device Type |
Network management device |
| Form Factor |
Desktop |
| Ports Qty |
4 |
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, PPP, IEEE 802.11a, IEEE 802.11g, 10 Gigabit Ethernet, IEEE 802.11n, IEEE 802.11ac Wave 2, IEEE 802.11ac Wave 1 |
| Performance |
Throughput: 4 Gbps |
| Capacity |
Maximum number of access points: 150 ¦ Maximum number of clients: 3000 ¦ VLANs supported: 4096 |
| Power Over Ethernet (PoE) Supported |
PoE |
| Power |
AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) |
4.394 cm x 34.13 cm x 21.59 cm |
| Weight |
2 kg |
|
|
|
| Extended details |
|
|
| General |
|
| Device Type |
Network management device |
| Width |
4.394 cm |
| Depth |
34.13 cm |
| Height |
21.59 cm |
| Weight |
2 kg |
| Networking |
|
| Form Factor |
Desktop |
| Ports Qty |
4 |
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, PPP, IEEE 802.11a, IEEE 802.11g, 10 Gigabit Ethernet, IEEE 802.11n, IEEE 802.11ac Wave 2, IEEE 802.11ac Wave 1 |
| Network / Transport Protocol |
TCP/IP, UDP/IP, ICMP/IP, ARP, BOOTP, DHCP |
| Routing Protocol |
CIDR |
| Remote Management Protocol |
SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH |
| Performance |
Throughput: 4 Gbps |
| Capacity |
Maximum number of access points: 150 ¦ Maximum number of clients: 3000 ¦ VLANs supported: 4096 |
| Status Indicators |
Diagnostic |
| Features |
Syslog support, IPv6 support, deep inspection, SNTP support, Wi-Fi Multimedia (WMM) support, Access Control List (ACL) support, CleanAir technology, Unified Communications, CAPWAP support, Management Information Base (MIB), Multicast filtering function, Cisco VideoStream technology, Link Aggregation, Management Information Base (MIB) II, Application Visibility and Control (AVC), TrustSec support, Private MIB |
| Encryption Algorithm |
DES, Triple DES, RC4, AES, IKE, TLS 1.0, TKIP, WPA, WPA2, PKI, AES-CBC, DTLS, WEP, TLS 1.2, ESP, ISAKMP, CRL, CBS, CCM, CCMP |
| Authentication Method |
RADIUS, TACACS, Extensible Authentication Protocol (EAP) |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.1ae, IEEE 802.11n, IEEE 802.11k, IEEE 802.1AX, IEEE 802.11w, IEEE 802.11r, IEEE 802.11u, IEEE 802.11ac Wave 2 |
| Expansion / Connectivity |
|
| Interfaces |
1 x 10GBase-T – RJ-45 ¦ 4 x 1000Base-T – RJ-45 ¦ 1 x console – RJ-45 ¦ 1 x serial – RJ-45 ¦ 1 x redundancy – RJ-45 ¦ 1 x console – mini-USB ¦ 1 x USB 3.0 |
| Miscellaneous |
|
| Compliant Standards |
EN 61000-3-2, EN55024, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1 Second Edition, FCC CFR47 Part 15 B, HMAC, Directive 2004/108/EC, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Class B, KN24, KCC KN22 Class B, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 6100-3-3, EN 55032 Class B, CNS 13438 Class B |
| Power |
|
| Power Over Ethernet (PoE) Supported |
PoE |
| Voltage Required |

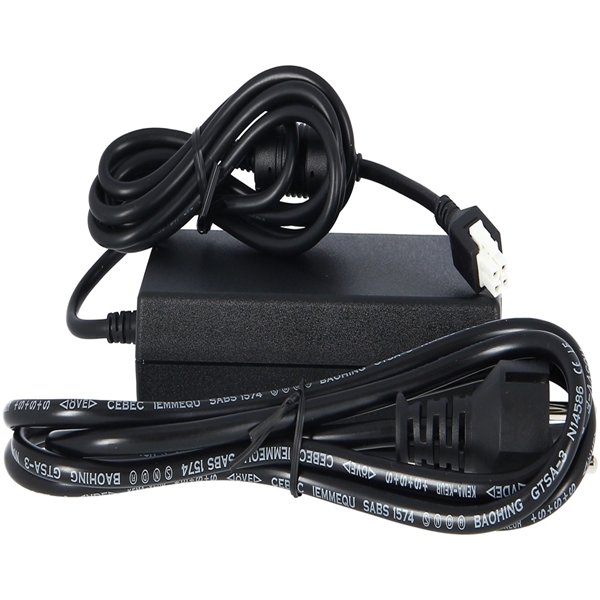

AC 120/230 V (50/60 Hz) |
| Manufacturer Warranty |
|
| Service & Support |
Limited warranty – replacement – 90 days – response time: 10 days |
| Environmental Parameters |
|
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
5 – 95% (non-condensing) |
|
